PET Injection Machine HSJ-90P

PET Injection Machine HSJ-90P

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: HSJ-90P
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price:
Delivery Time: 30DAYS
Payment Terms: T/T OR L/C
Supply Ability: 1000000

PET Injection Machine HSJ-90P factory

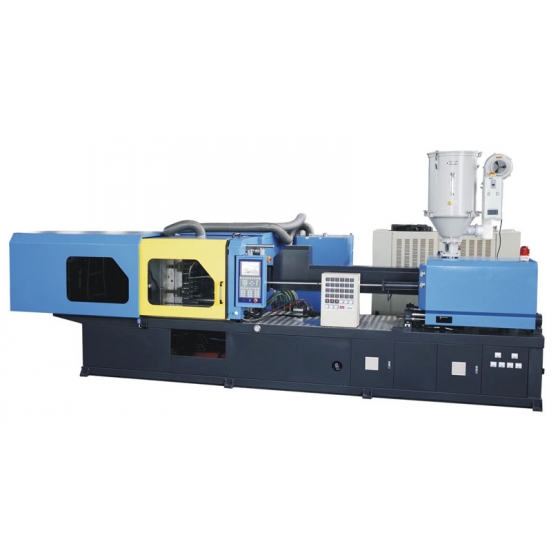

Large Image:PET Injection Machine HSJ-90P

  • Proffesional PET screw and barrel with 1:23 L/D ratio to ensure high mix and plasticize quality;
  • Big channel cooling water regulating to ensure multi-capacity PET proform molds cooling fast and enough;
  • Increase eject force to ensure multi PET proform taking out;
  • PID Barrel exactly temperature control.
Device Item Unit HSJ-90P HSJ-120P HSJ-150P HSJ-180P HSJ-180P(B) HSJ-220P HSJ-250P HSJ-250P(B) HSJ-280P HSJ-330P HSJ-350P HSJ-440P HSJ-400P(B) HSJ-550P HSJ-650P




INJECTION		 Screw Diameter Mm 45 45 50 55 65 65 65 70 70 70 75 75 90 90 100
Screw L/D Ratio L/D 23 23 23 20 23 23 23 23 23 23 23 23 23 23 23
Theoretical Shot volume Cm3 238 294 392.5 546 829 800 829 1192 1190 1192 1500 1500 2410 2410 3728
Injection Weight(PET) G 260 330 425 596 900 870 900 1300 1300 1300 1639 1639 2600 2600 4070
Injection Pressure Mpa 143 139 156 140.7 141.6 125.2 1416 147 128.5 147 150 177.5 1375 1375 149
 Injection Rate(PET) g/s 98 118 131 192 200 200 200 232 270 232 275 398 512 563 683
Plastizing Capacity g/s 15 21 28 32.6 382 38.2 38.2 54 51 54 67 67 116 132 127




MAKING-UP		 Screw Speed Range r/min 0-230 0-200 0-200 0-150 0-110 0-110 0-110 0-120 0-115 0-120 0-150 0-180 0-135 0-145 0-130
Clamping Force Kn 900 1200 1500 1800 1800 2200 2500 2500 2800 3300 3500 4000 4000 5500 6500

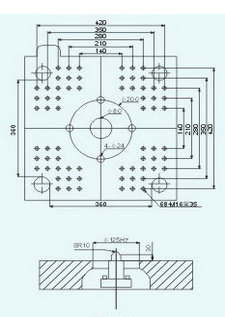

Clearance between Tie Bars Mm 360x360 400*380 410*410 460*460 460*460 520*520 570*570 570*570 580*580 620*620 600*600 720*720 720*720 800*800 910*840
Opening Stroke mm 325 360 400 460 460 510 550 550 570 600 660 710 710 750 860
Max. Mould Height Mm 360 400 430 480 480 560 600 600 610 680 720 720 720 780 860
Min. Mould Height Mm 150 150 150 200 200 250 250 250 250 280 300 250 250 350 400







OTHER		 Ejector Force Kn 27 27 33 61 61 70 70 70 87 87 110 110 110 110 110
Ejector Stroke Mm 100 100 120 130 130 140 150 150 160 160 180 200 200 185 250
Pump Power Kw 11 11 15 18.5 22 22 22 30 22 30 30 45 45 45 37+22
Heating Power Kw 9.0 7.43 12 13.47 18.32 19.67 18.32 23.72 21.6 23.72 24.75 30.5 30.5 30.5 42.5
Oil Tank Capacity L 200 200 270 350 500 500 500 700 700 600 800 1200 1200 1200 1600
Machine Weight T 3.8 4.3 4.8 5.7 6.3 7.1 8.5 9 10.5 12.2 15 18 18 25 36
Machine Dimension mmm 4.3*1.15*1.8 4.55*1.2*1.8 4.8*1.2*1.8 5.6*1.35*1.85 5.9*1.35*1.85 6.1*1.5*2 6.4*1.5*2 6.6*1.55*2.1 7.0*1.65*2.0 7.0*1.72*2.1 7.5*1.75*2.3 8.8*2.0*2.25 8.8*2.0*2.25 9.5*2.1*2.35 10.5*2.15*2.5
