Complete automatic blowing machine
Product Details:
| Place of Origin: | |
|---|---|
| Brand Name: | |
| Model Number: | AUXT Serie |
| Certification: |
Payment & Shipping Terms:
| Minimum Order Quantity: | |
|---|---|
| Price: | |
| Delivery Time: | |
| Payment Terms: | |
| Supply Ability: |
-

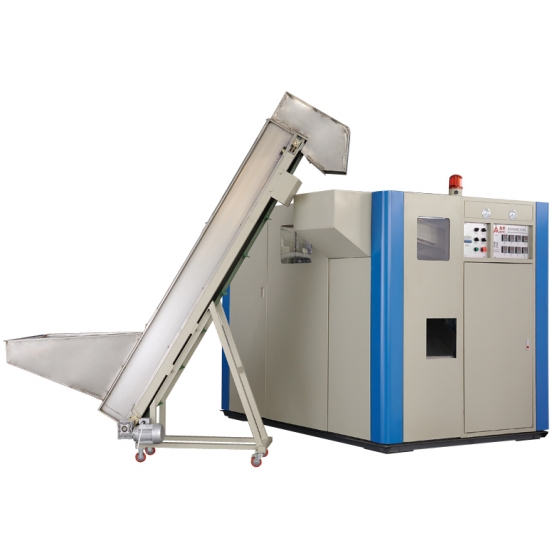

Large Image:Complete automatic blowing machine
Auxt serie is a complete automatic blowing machine designed by our company. The machine works with high production and good stability.
Mechanical characteristics
Mechanical characteristics
1, simple operation, easy maintenance. We can control the man-machine interface, view the current status of the machine. If mechanical failure will automatically send alarm whistle by means of the display unit can accurately locate the fault, easy maintenance staff and timely maintenance.
2, the use of high energy waste less, we have a stable infrared heating system blowing and highly precise blow-mold shut down the system to ensure quality.
3, the mechanical structure designed smaller footprint。
| Item | Model Unit |
AUXT 600-1 | AUXT600-4 | AUXT1500-1 | AUXT2500-1 | AUXT5500-1M |
| Cavity number | cavity | 1 | 4 | 1 | 1 | 1 |
| Clamping stroke | mm | 100 | 120 | 120 | 160 | 160 |
| Output | pcs/h | 1500 | 3600 | 1100 | 900 | 700 |
| Total power | kw | 22.5 | 28.5 | 30.5 | 26.5 | 38.5 |
| Power consumption | kw | ≤8 | ≤15 | ≤12 | ≤13 | ≤18 |
| Pressure for working | kg | 10 | 10 | 10 | 10 | 10 |
| Pressure for blowing | kg | 30 | 30 | 30 | 30 | 30 |
| Flow rate for working | m3 | 0.8 | 2.2 | 1.4 | 1.7 | 2.5 |
| Flow rat for blowing | m3 | 0.8 | 2 | 1.2 | 1.5 | 2 |
| Neck diameter | mm | 22-38 | 20-38 | 22-38 | 22-38 | 40-50 |
| Max diameter & height | mm | 65*235 | 65*235 | 105*320 | 145*320 | 180*335 |
| Machine dimension | m | 2.2*1.7*1.7 | 4*1.95*1.95 | 2.5*1.8*2 | 2.9*1.85*2 | 2.6*1.8*2 |
| Machine weight | kg | 1500 | 2100 | 1600 | 1800 | 1800 |
| Item | Brand | Origen |
| PLC | SCHNEIDER | France |
| CYLINDER: CLAMPING,STRETCHING, STEPPING,TRANSLATION,LIFTING |
FESTO | Germany |
| HIGH PRESSURE VALVE AND EXHAUST |
PARKER | China |
| LOW PRESSURE VALVE |
ASCO | USA |
| TERMINAL BLOCKS: FROM |
DEFUR | Germany |
| TRANSFORMATION POWER |
MV | Taiwan |
| OPERATION VALVE |
TEC | Korea |
| MAIN PIPE CONNECTOR |
SANG-A | Korea |
| Human Interface Device: fault treatment can be done in the touch screen |
