Semi-automatic bottle blowing machine

Semi-automatic bottle blowing machine

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: XT-B
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 45DAYS--UP
Payment Terms: T/T OR L/C
Supply Ability: 1000000

  Semi-automatic bottle blowing machine factory

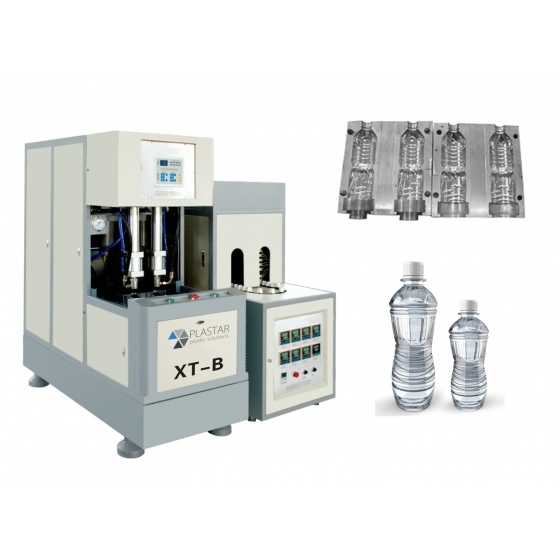

Large Image: Semi-automatic bottle blowing machine

This semi-automatic bottle blow molding machine with computer is suitable for producing PET plastic containers and bottles from 100-1500ml. It is widely used to produce the carbonated bottle,mineral water bottle,etc.
● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the preform , the preform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment,easy and safe to operate.
Type Item Unit Parameter
Product material / PET
Volume L 0.1-1.5
Theoretical output pcs/h 800-1200
Preform length mm 15-300
Preform inner diameter mm 5-38
Max.mould plate Dimenstion
(L x W)
mm 350*380
Max.mould thickness mm 230
Clamping force KN 65
Mould opening stroke mm 160
Machine size and weight
Main machine (L x W x H) cm 150*70*165
Main machine weight kg 650
Heater (L x W x H) cm 180*70*150
Heater weight kg 230
Max.heating power kw 14
