Injection Molding Machine PSJ-250
Product Details:
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PLASTAR |
| Model Number: | PSJ-250 |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | |
| Delivery Time: | 30DAYS--UP |
| Payment Terms: | T/T OR L/C |
| Supply Ability: | 1000000 |
-

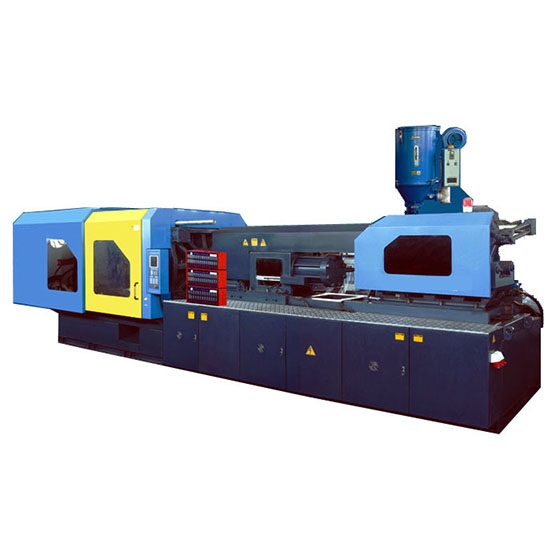

Large Image:Injection Molding Machine PSJ-250
Electricity cost is one of main concern of an injection molder, an efficient sustainability in the field of human-machine interface is gained by the fact, that the machine operation continues to be developed constantly under ergonomic points of view and with that the operation of machines becomes easier and saving electricity cost. Plastar's Servo Drive series helps customer for cost saving and precise molding process with competitive advantage.
- Servo control, complete elimination of high pressure throttle, under normal usage circumstances than asynchronous motor + quantitative pump save energy 50%-60%.
- Because of accuracy control, the repeatability precision error is 0.1%, product is very precise
- Reduce the hydraulic oil temperature, reduce the consumption of cooling water more than 30%, some place even do not need the cooling
- Reduce the open mold and close mold impact, prolong the working life of the hydraulic oil temperature , machine and mold.
- Reduce noise, improve the working environment
|
Device |
Item |
Model Unit |
PSJ-250 |
||
|
|
|
|
A |
B |
C |
|
Injection |
Screw diameter |
mm |
50 |
55 |
60 |
|
|
Screw L/D ratio |
L/D |
24 |
21.8 |
23.8 |
|
|
Theoretical shot volume |
cm3 |
450 |
605 |
720 |
|
|
Injection weight(PS) |
g |
450 |
545 |
650 |
|
|
Injection pressure |
MPa |
215 |
178 |
150 |
|
|
Injection rate(PS) |
g/s |
149 |
180 |
215 |
|
|
Plastizing capacity(PS) |
g/s |
20.5 |
25.8 |
30 |
|
|
Screw speed range |
r/min |
０～150 |
||
|
Making-up |
Clamping force |
kn |
2500 |
||
|
|

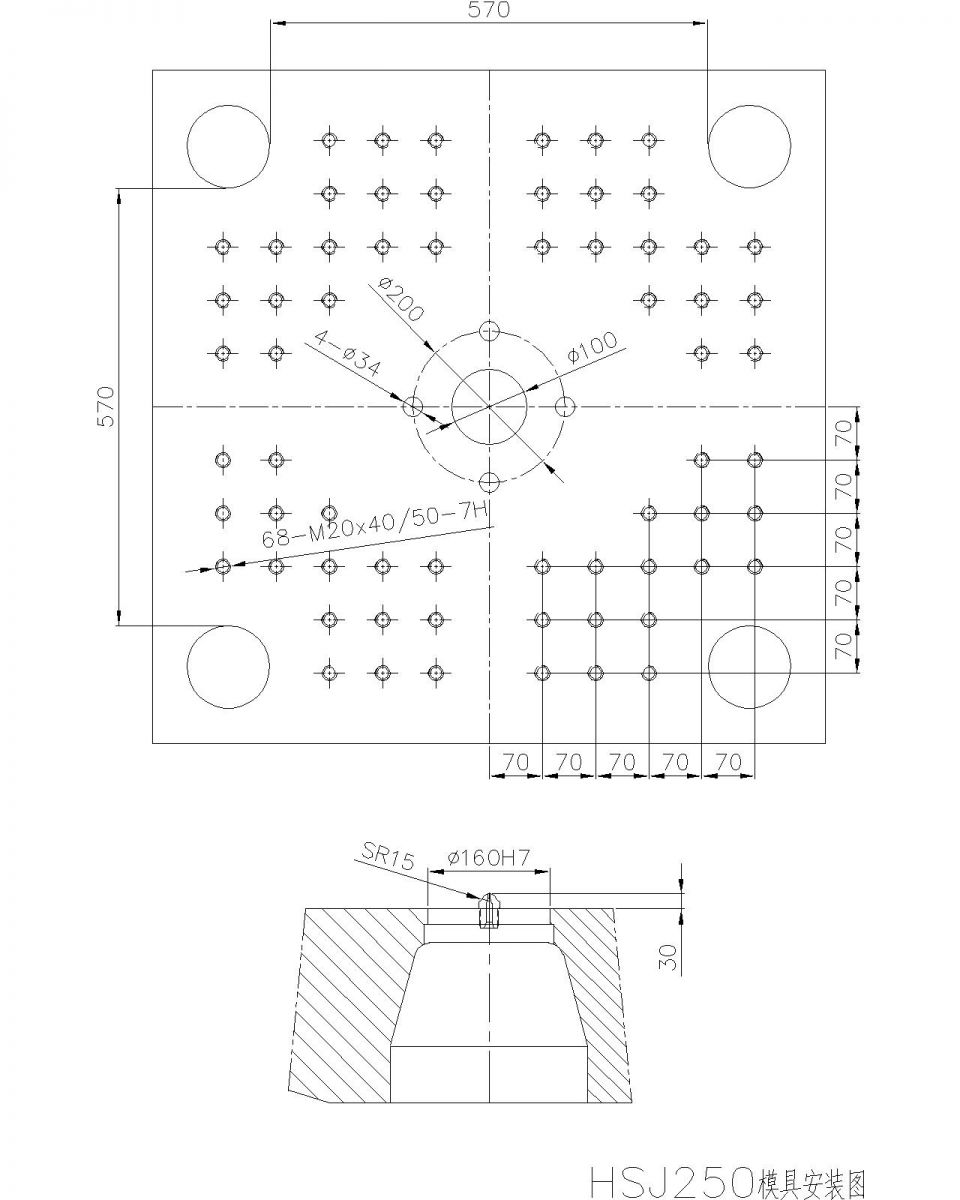

Clearance between tie bars |
mm |
570×570 |
||
|
|
Opening stroke |
mm |
550 |
||
|
|
Max. mould height |
mm |
600 |
||
|
|
Min. mould height |
mm |
220 |
||
|
Other |
Ejector force |
kn |
70 |
||
|
|
Ejector stroke |
mm |
150 |
||
|
|
Pump power |
kw |
22 |
||
|
|
Heating power |
kw |
16.6 |
||
|
|
Oil tank capacity |
L |
500 |
||
|
|
Machine weight |
t |
8.2 |
||
|
|
Machine dimension |
m |
6.3×1.5×2 |
||
