Injection Molding Machine PSJ-580

Injection Molding Machine PSJ-580

Product Details:

Place of Origin: CHINA
Brand Name: PLASTAR
Model Number: PSJ-580
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 1
Delivery Time: 30DAYS
Payment Terms: T/T OR L/C
Supply Ability: 1000

 Injection Molding Machine PSJ-580 factory

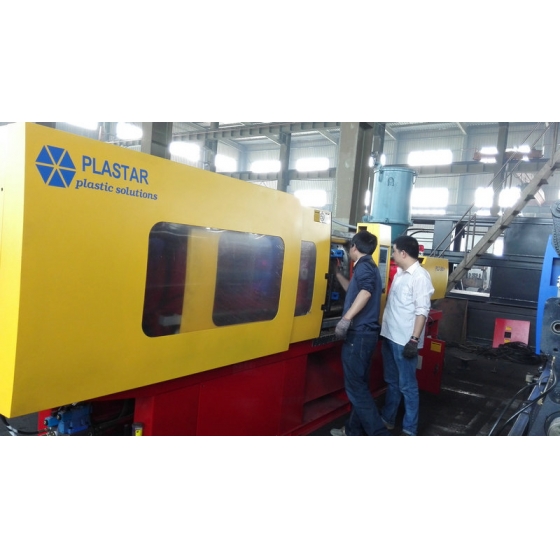

Large Image:Injection Molding Machine PSJ-580

Electricity cost is one of main concern of an injection molder, an efficient sustainability in the field of human-machine interface is gained by the fact, that the machine operation continues to be developed constantly under ergonomic points of view and with that the operation of machines becomes easier and saving electricity cost. Plastar's  Servo Drive series helps customer for cost saving and precise molding process with competitive advantage.
  1. Servo control, complete elimination of high pressure throttle, under normal  usage circumstances than asynchronous motor + quantitative pump save energy 50%-60%.
  2. Because of accuracy control, the repeatability precision error is 0.1%, product is very  precise
  3. Reduce the hydraulic oil temperature, reduce the consumption of cooling water more than 30%, some place even do not need the cooling
  4. Reduce the open mold and close mold impact, prolong the working life of the  hydraulic oil temperature , machine and mold.
  5. Reduce noise, improve the working environment
  • Clamping Unit: Arrange obliquely five-point and elbow type structure. Optimization design on parameter of the computer. Finite-element analysis is applied to design the plates. The unit also functions of low pressure mold protection with extra sensitivity. Machinery, electric pair of safe protection function to insure the safety;
  • Oil motor drive the gear to adjusts mold, the moving ahead simultaneously is good and can adjusting the mold automatically according to the pressure set up, very convenient and reliable;
  • Computer Controlled: According imported computer which special for injection machine. The function is powerful and controlled by CPU, improve the speed in control system and the alarm on over-temperature. Improve the working speed of machine;

  • Injection Unit: Double guiding rod supporting. Dual-cylinder balance injection system, Single-Cylinder push and draw back setting. Multi-stage pressure & speed injection. One –string hydraulic motor setting. Super quality steel screw stem mixed with chrome, molybdenum and aluminum and barrel disposed by nitrogen. Suitable for every kinds of plastic raw material;
  • Hydraulic Unit: Adopt imported advance hydraulic components;
  • Storing type on automatic lubricating system of oil;
  • With quick response and steady capability, servo gearshift dynamical control system has equipped with pressure feedback device with high precision and sensitivity, which forms a close –loop precision control and provide products with high stability;
  • Servo energy saving injection molding machine to achieve the maximum output, in comparison with conventional hydraulic injection molding machines, their response speed have been obviously quickened and cycle time effectively shortened, improving production efficiency;
  • There is no extra energy consumption due to output volume changes according to load alteration. The phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, servo energy –saving injection molding machines will save 20% -80% energy and bring your prominent economic benefit.
Device Item      Model
Injection Screw diameter mm 80 85 90
Screw L/D ratio L/D 21 20 18.9
Theoretical shot volume cm3 2220 2500 2810
Injection weight(PS) g 1020 2256 2550
Injection pressure MPa 192 170 152
Injection rate(PS) g/s 448 505 567
Plastizing capacity(PS) g/s 58 69 71
Screw speed range r/min 0~120
Making-up Clamping force kn 5800
Clearance between tie bars mm 850×850
Opening stroke mm 820
Max mould height mm 840
Min mould height mm 350
Other Ejector force kn 155
Ejector stroke mm 185
Pump power kw 55
Heating power kw 30.5
Oil tank capacity l 1100
Machine weight t 23
Machine dimension m 9.15×2.15×2.2
