Injection Molding Machine PSJ-2500

Product Details:

Place of Origin:	CHINA
Brand Name:	PLASTAR
Model Number:	PSJ-2500
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:
Delivery Time:	30DAYS--UP
Payment Terms:	T/T OR L/C
Supply Ability:	1000000

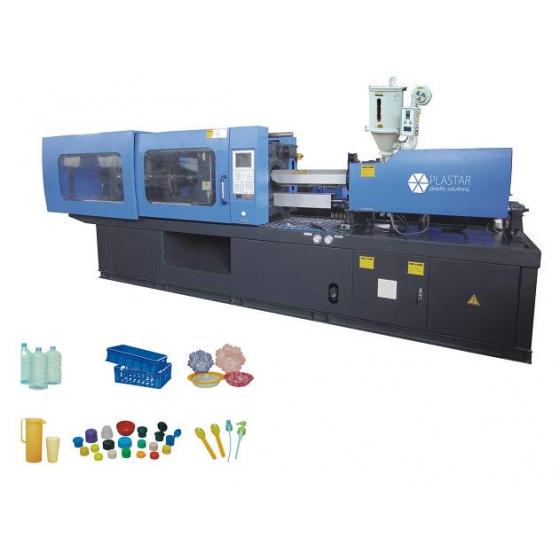

Large Image:Injection Molding Machine PSJ-2500

Features
Parameter

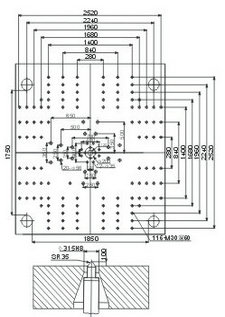

Diagram
Inquiry Now

Clamping Unit: Arrange obliquely five-point and elbow type structure. Optimization design on parameter of the computer. Finite-element analysis is applied to design the plates. The unit also functions of low pressure mold protection with extra sensitivity. Machinery, electric pair of safe protection function to insure the safety;
2,

Oil motor drive the gear to adjusts mold, the moving ahead simultaneously is good and can adjusting the mold automatically according to the pressure set up, very convenient and reliable;
3,
Computer Controlled: According imported computer which special for injection machine. The function is powerful and controlled by CPU, improve the speed in control system and the alarm on over-temperature. Improve the working speed of machine;
4,
Injection Unit: Double guiding rod supporting. Dual-cylinder balance injection system, Single-Cylinder push and draw back setting. Multi-stage pressure & speed injection. One –string hydraulic motor setting. Super quality steel screw stem mixed with chrome, molybdenum and aluminum and barrel disposed by nitrogen. Suitable for every kinds of plastic raw material;
5,
Hydraulic Unit: Adopt imported advance hydraulic components;
6,
Storing type on automatic lubricating system of oil;
With quick response and steady capability, servo gearshift dynamical control system has equipped with pressure feedback device with high precision and sensitivity, which forms a close –loop precision control and provide products with high stability;

Servo energy saving injection molding machine to achieve the maximum output, in comparison with conventional hydraulic injection molding machines, their response speed have been obviously quickened and cycle time effectively shortened, improving production efficiency;
There is no extra energy consumption due to output volume changes according to load alteration. The phase of holding pressure, servo motor lowers rotate speed and consumes a little of energies. In the phase of cooling, motor doesn’t work and consumes no energy. According to different products, servo energy –saving injection molding machines will save 20% -80% energy and bring your prominent economic benefit.

PSJ-2500

Device	Item	Model Unit	PSJ-2500
Device	Item	Model Unit	A	B	C
Injection	Screw diameter	mm	170	180	190
	Screw L/D ratio	L/D	23.5	22.2	21
	Theoretical shot volume	cm³	18149	20347	22670
	Injection weight(PS)	g	16552	18556	20675
	Injection pressure	MPa	186	166	248
	Injection rate(PS)	g/s	1700	1907	2125
	Plastizing capacity(PS)	g/s	195	226	254
	Screw speed range	r/min	０～50
Making-up	Clamping force	kn	25000
	Clearance between tie bars	mm	1850×1750
	Opening stroke	mm	1900
	Max mould height	mm	1800
	Min mould height	mm	950
Other	Ejector force	kn	435
	Ejector stroke	mm	450
	Pump power	kw	55+55+45+45
	Heating power	kw	120
	Oil tank capacity	l	3600
	Machine weight	t	200
	Machine dimension	m	18.2×3.95×4.5
