Injection Molding Machine PSJ-760
Product Details:
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | PLASTAR |
| Model Number: | PSJ-760 |
| Certification: | CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | |
| Delivery Time: | 30DAYS--UP |
| Payment Terms: | T/T OR L/C |
| Supply Ability: | 10000 |
-

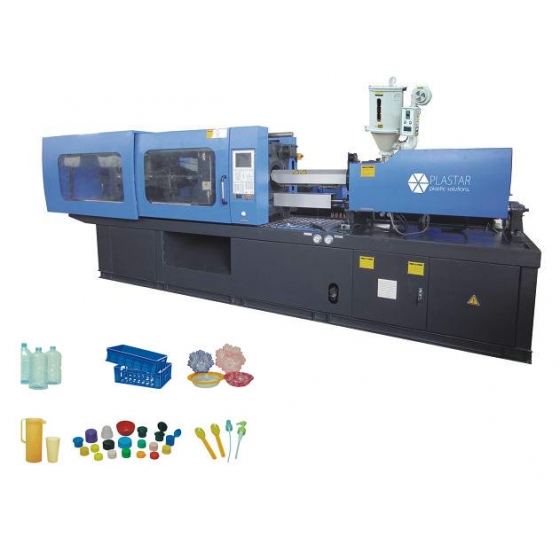

Large Image:Injection Molding Machine PSJ-760
| Device | Item | Model Unit |
PSJ-760 | ||
| A | B | C | |||
| Injection | Screw diameter | mm | 90 | 100 | 110 |
| Screw L/D ratio | L/D | 22.2 | 21 | 19 | |
| Theoretical shot volume | cm3 | 3179 | 3925 | 4749 | |
| Injection weight(PS) | g | 2860 | 3530 | 4274 | |
| Injection pressure | MPa | 215 | 174 | 144 | |
| Injection rate(PS) | g/s | 567 | 700 | 848 | |
| Plastizing capacity(PS) | g/s | 72 | 86 | 105 | |
| Screw speed range | r/min | ０～120 | |||
| Making-up | Clamping force | kn | 7600 | ||

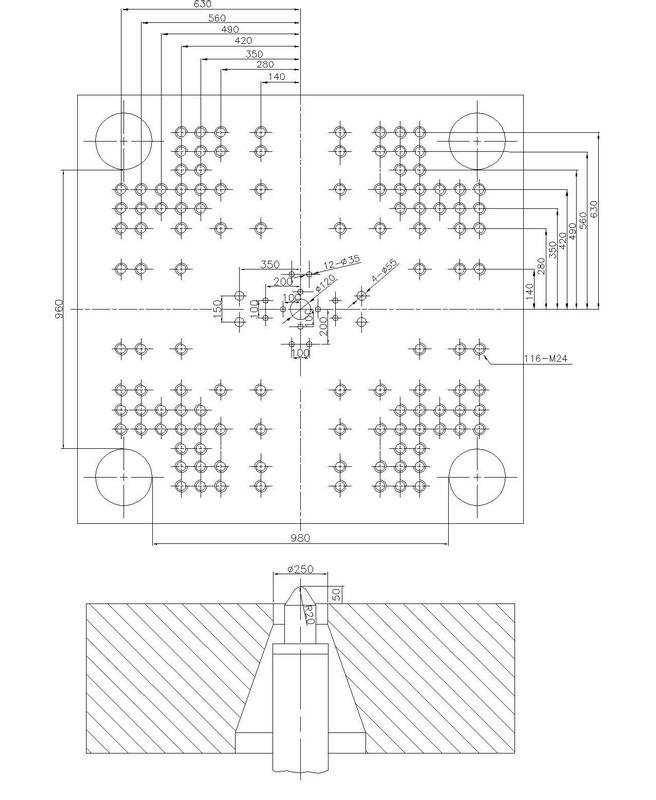

| Clearance between tie bars | mm | 980×960 | |||
| Opening stroke | mm | 960 | |||
| Max mould height | mm | 940 | |||
| Min mould height | mm | 420 | |||
| Other | Ejector force | kn | 185 | ||
| Ejector stroke | mm | 260 | |||
| Pump power | kw | 37+30 | |||
| Heating power | kw | 38.5 | |||
| Oil tank capacity | l | 1500 | |||
| Machine weight | t | 39 | |||
| Machine dimension | m | 10.2×2.3×2.6 | |||
